Dolor ONE

Laser 810 nm - patented pulse

Dolor ONE

Plus

Dolor ONE is ideal for functional recovery activity, excellent on chronic and acute inflammation and painful symptoms.

Dolor ONE is a 5 Watt laser that can deliver 2500 mJ per second, by transferring the energy over 5 cm deep.

The therapeutic effect of Dolor ONE depends on the interaction of the laser light with the biological tissue involved.

Plus

Details

1

Laser source self-diagnosis system with feedback to the operator

The system verifies in real time the efficiency of laser sources, to ensure efficient and effective treatments. Any anomaly is reported to the user in real time.

2

Cooling system

The device has an innovative cooling system, designed by Winform Medical Engineering, which allows to dissipate the heat from the sources without the need of liquid radiators, with complex handling and maintenance.

3

Removable optical fiber

The laser emission is conveyed on a liquid optical fiber that allows to radiate effectively a large surface avoiding the losses caused by the use of defocusing lenses.

Design & Innovation

The Zoom handpiece allows the operator to personalize the treatment area by focusing energies at various diameters, covering surfaces from 5 cm² to 13 cm² with 4 steps.

Dolor ONE is manufactured with biocompatible materials to ensure the maximum safety to operator and patient. Due to the particular type of painting, it is easy to clean and sanitize.

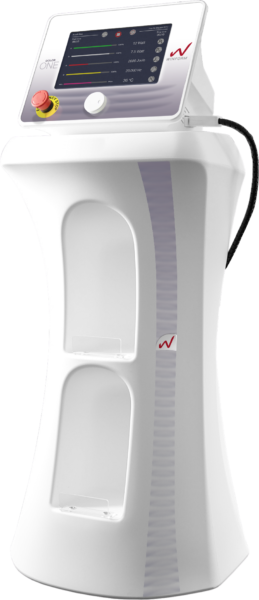

The sophisticated and modern design of the stand allows Dolor ONE to be moved simply within the center, thanks to the lightness achieved through the use of lightweight but extremely strong materials. (OPTIONAL)

Display & Interface

Display

10.2 "TFT color display that allows the operator to view all the useful parameters during the treatment.
The software is intuitive and allows a quick parameters setting.

Customization

The operator can select preset programs or create and save its own customized programs.

Safety

Security is guaranteed by a "watch dog" system that constantly monitors the software working properly.
The software design was carried out in accordance with IEC 62304:2006, to ensure stability and safety.

Display & Interface

Specifications

  • Wavelength
    810 nm
  • Duty cycle
    50 %
  • Pulse energy
    2500 mJ
  • Essential performance
    1250 mJ
  • Source
    1
  • Source Type
    GaAIAs semiconductors
  • Spot
    13 cm2
  • Display
    TFT 10,2"
  • Removable optical fiber
    Yes
  • Medical Device Classification
    Class IIb according to 93/42/CE
